Details

Singlemode Fiber can be used in all cable constructions, including loose tube, tight buffered, ribbon, and central tube designs. It supports long-haul, metropolitan, access and premises (FTTH) applications in telecommunications, CATV, utility, and intelligent traffic networks.

Key Features and Benefits

  • High-performance system engineered to meet network requirements for G.652.D, G.657.A1, G.657.A2, and G.657.B3 applications
  • Allow the use of smaller splice trays or closures
  • Allows a smaller bend radius with small diameter cables such as patch cords and distribution cables
  • Installations are covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards
  • A single point of contact for all PanGen inquiries
  • All connectivity components are 100% performance-tested
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers
  • Fully compatible suite of GenSPEED® cable, Panduit connectors and patch cords

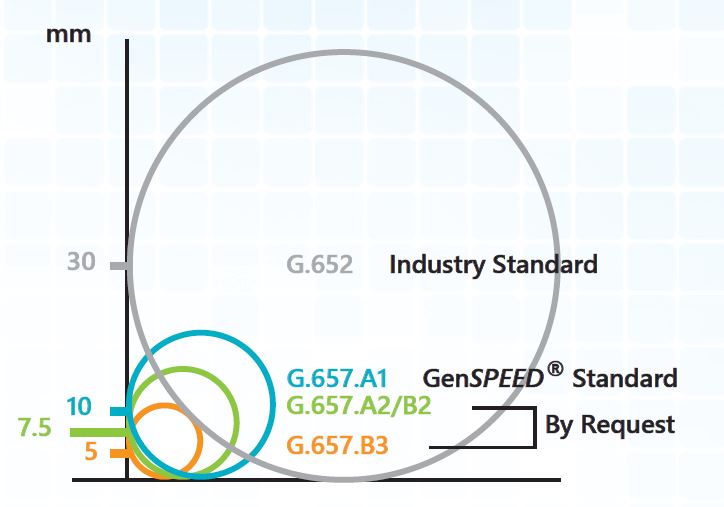

Bending Radius for Singlemode Fiber Types

Bending Radius for Singlemode Fiber Types

GenSPEED® Singlemode Optical Fiber Cable

  • Cable designs in various constructions for premise, outside plant and indoor/outdoor applications
  • Industry-leading GenSPEED® Tight Buffer cabled attenuation allows for lower link loss and more headroom in loss budget
  • 0.4 dB/Km @ 1310 nm vs. 0.5 dB/Km standard
  • 0.3 dB/Km @ 1550 nm vs. 0.5 dB/Km standard

Cable Types

Cable Style Cable Type Application Environment Available Fiber Counts Product Line Armoring Available
Distribution Plenum
Tight Buffer
Indoor
2-24, 36-144
800-00-HB-CCC-EA
Interlock Aluminum
Distribution Riser
Tight Buffer
Indoor
2-24, 24-144
400-00-HB-CCC-EA
Interlock Aluminum
I/O Distribution Plenum
Tight Buffer
Indoor/Outdoor
2-24, 24-144
C1182-00-HB-CCC-EA
Interlock Aluminum
I/O Distribution Riser
Tight Buffer
Indoor/Outdoor
2-24, 24-144
C1181-00-HB-CCC-EA
Interlock Aluminum
Single Jacket Riser, Single Jacket Plenum
Loose Tube
Indoor/Outdoor
2-96
DRLDB-00-HB-CCC-E3, DPLDB-00HB-CCC-E3
Interlock Aluminum
Loose Tube Single Jacket
Loose Tube
Outdoor
4-288
EDH1JKT-12-HB-CCC-E3
Corrugated Coated Steel or Tape

*Where CCC equals fiber count

Panduit Connectivity

Pre-Polished Field Terminated Connectors

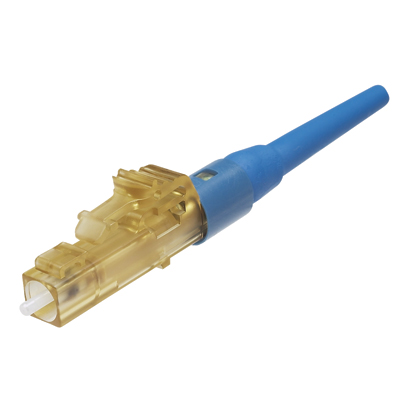

FLCSSCBUY

LC Simplex Singlemode OptiCam Connector 900µm Blue Boot

FLCDSCBUY

LC Duplex Singlemode OptiCam Connector 900µm Blue Boot

FSC2SCBU

SC Simplex Singlemode OptiCam Connector 900µm Blue Boot

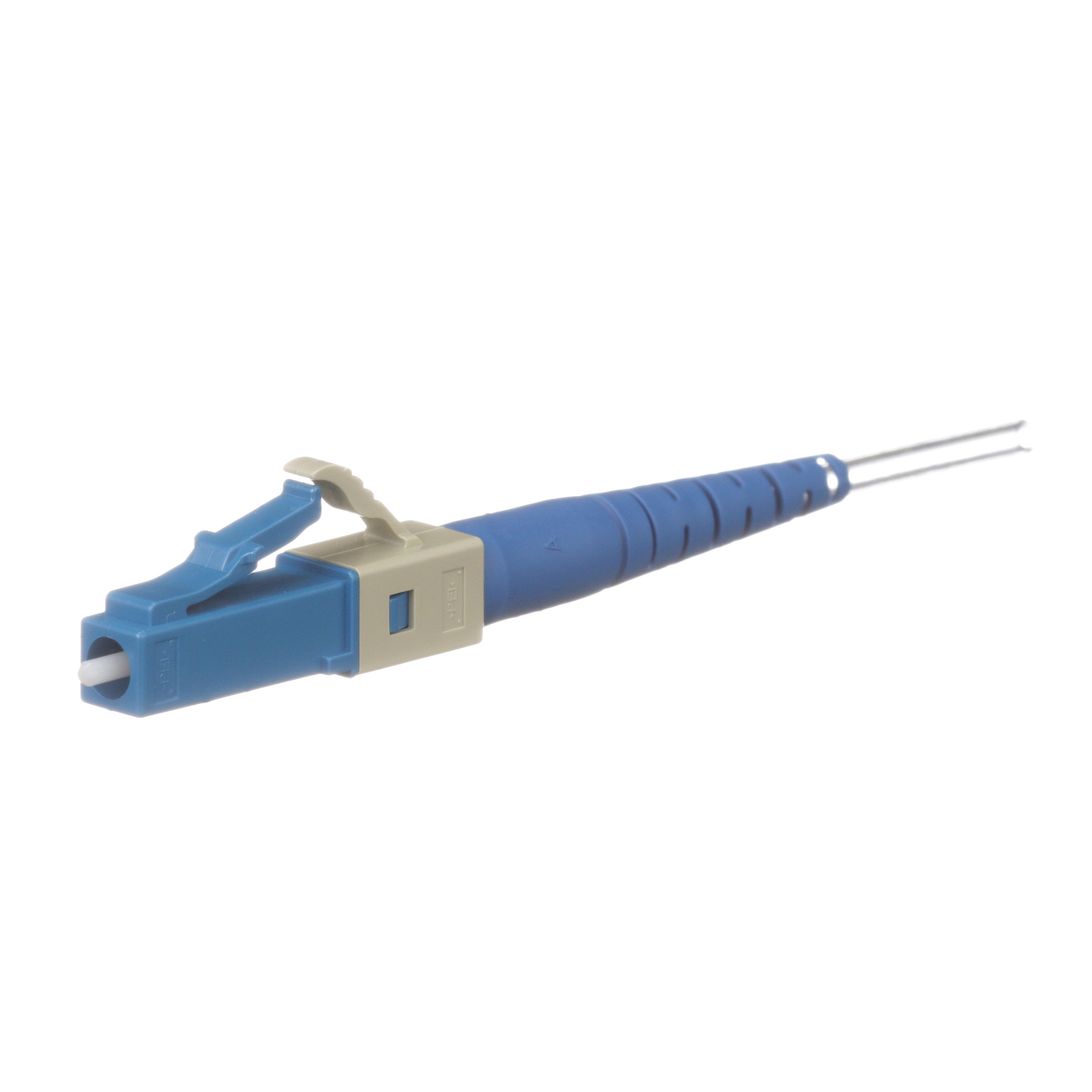

FLCS2/9SOCU9BU

LC-UPC Singlemode Fusion Splice Connector 9/125μm Blue Boot

Fiber Distribution Products

FAP12WBULCZ

Fiber Adapter Panel, 6-port Duplex LC (Blue) with Zirconia Split Sleeves for Singlemode

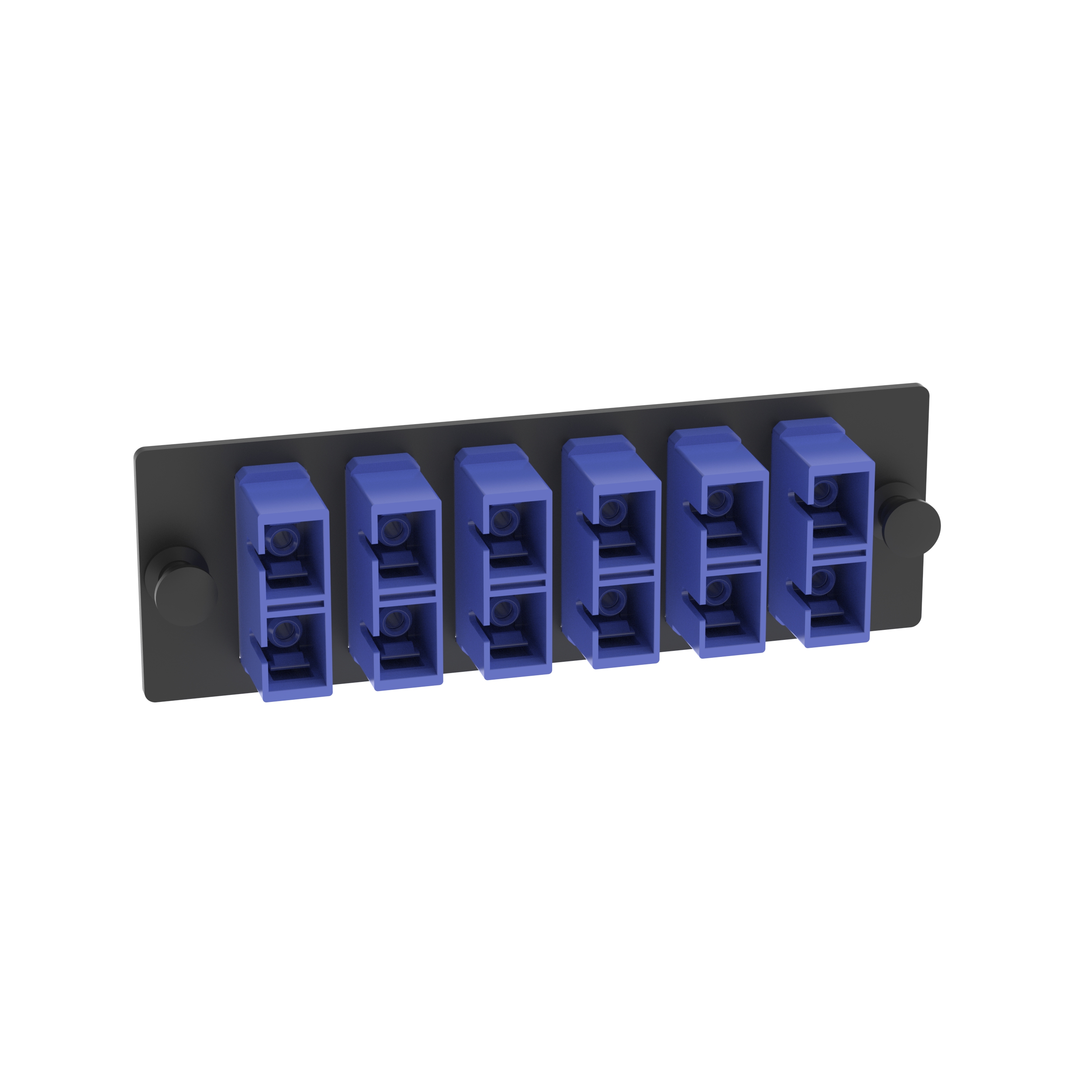

FAP6WBUDSCZ

Fiber Adapter Panel, 6-port Duplex SC (Blue) with Zirconia Split Sleeves for Singlemode

FRME1U

Rack Mount Fiber Enclosure, 1 RU

FRME2U

Rack Mount Fiber Enclosure, 2 RU

FRME4

Rack Mount Fiber Enclosure, 4 RU

Pre-Terminated Connectivity

F91BN1NNNSNM001

1-fiber OS2, 900µm buffered pigtail, with no jacket, LC to pigtail

F92ERLNLNSNM001

2-fiber Singlemode patch cord, riser {OFNR} rated, LC duplex to LC duplex, 1.6mm jacketed cable, 1 meter

F92ERLNLNSNM003

2-fiber singlemode patch cord, riser {OFNR} rated, LC duplex to LC duplex, 1.6mm jacketed cable, 1 meter

Field Termination Kits

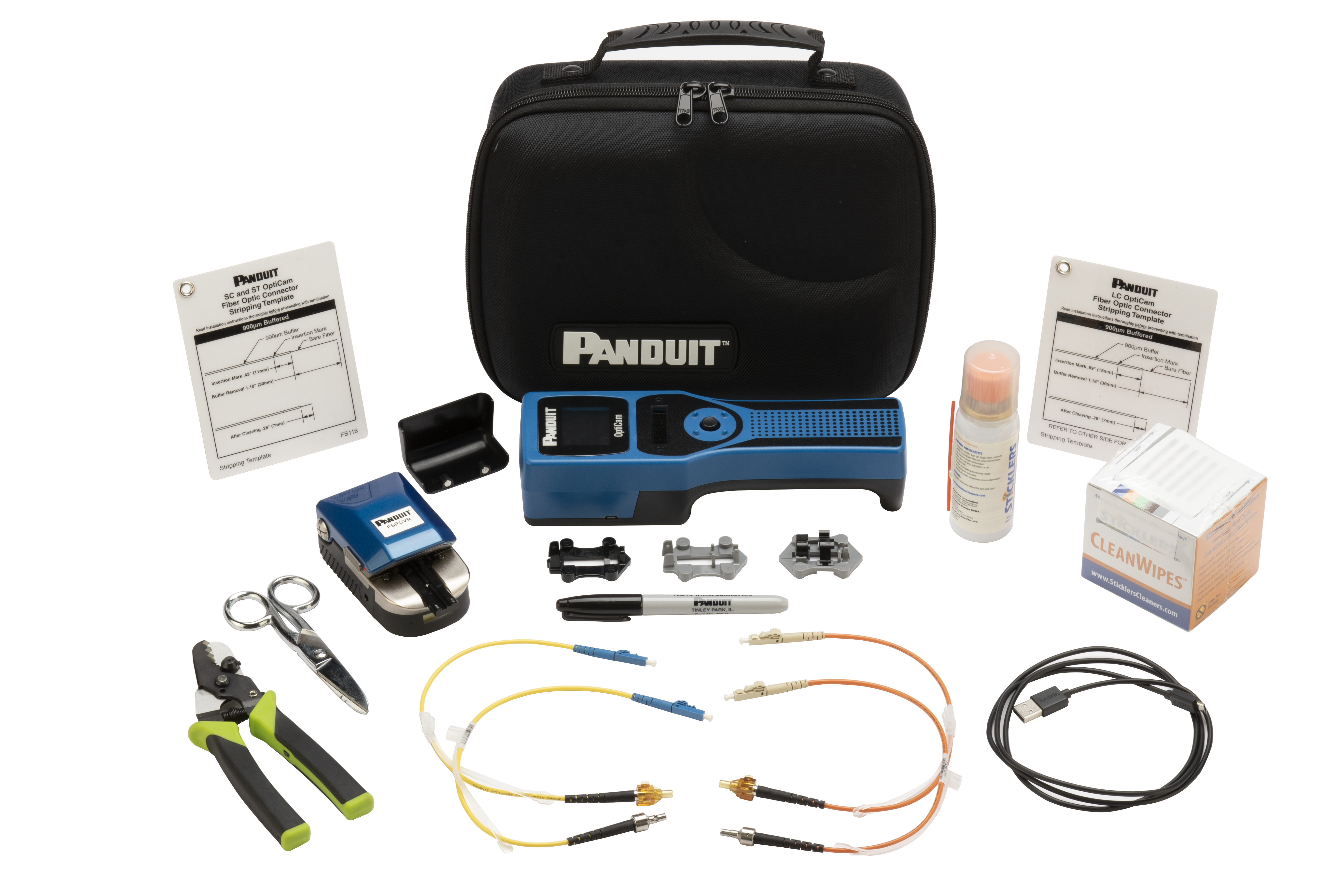

FOCTT2-PKIT2

OptiCam 2 Termination Tool Kit with Precision Rotary Cleaver

FOCTT2-KIT

OptiCam 2 Termination Tool Kit
