All Copper

Category 6A Shielded F/UTP System Solutions

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA-568.2-D channel requirements.
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the latest industry standards.
  • A single point of contact for all PanGen inquiries.
  • All connectivity components are 100% performance-tested.
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers.
  • Outstanding performance on all electrical parameters to provide a system that exceeds all applicable standards. An overall shielded cable, requiring grounding and providing industry-leading protection from external cable noise sources.
  • TRU-Mark® footage marking system to help eliminate unused lengths of cable and save installation time.
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist.
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tanglefree latch which prevents snags and provides easy release for simple moves, adds and changes.
  • Modular patch panels are available in flat and angled styles.

Recommended for:

  • IEEE 802.3: 10G BASE-T, 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE++
  • ANSI/TIA 854: 1000 BASE-TX
  • Digital Video
  • Broadband and Baseband Analog Video
  • CDDI, Token Ring, ATM
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A Guaranteed Channel Headroom over ISO Class EA
Insertion Loss
3%
3%
NEXT
3.5 dB
2.5 dB
PSNEXT
5 dB
4 dB
PSACR-F
10 dB
10 dB
PSACR-N
6.5 dB
6.5 dB
PSANEXT
20 dB
20 dB
PSAACR-F
20 dB
20 dB
Return Loss
3 dB
3 dB

* Electrical values are above specified standards and consist of worst pair margin per ANSI/TIA 568.2-D Category 6A and ISO 11801 Class EA standards.

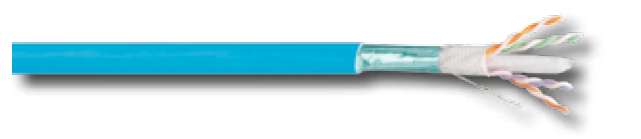

GenSPEED® 10,000 Category 6A F/UTP (ScTP) Cable

Features and Benefits

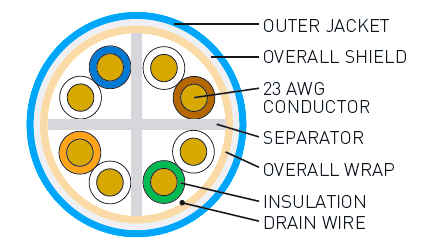

  • An overall shielded or foiled-twisted pair (F/UTP) cable, requiring grounding and providing industry-leading protection from external cable noise sources, also known as alien crosstalk (PSANEXT and PSAACRF).
  • Improved cable temperature rating (90°C plenum, 75°C riser) for greater protection against increased operating temperatures and for high-wattage applications.
  • The internal separator optimizes internal pair geometry to yield superior electrical performance and maintain flexibility. This unique cross-web stabilizes each pair to create a smaller, round cable profile.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • TRU-Mark® print legend contains footage markings from 1000’ to 0’.
  • Made in U.S.A.

Part Numbers

Jacket Color CMP (Plenum) Spool CMR (Non-Plenum) Spool

Blue
7131586
7133586

White
7131587
7133587

Contact PanGen Customer Service to see all colors and options.
Non-stock items may be subject to minimum order quantities.

Panduit Category 6A Connectivity

Mini-Com® TX6A™ 10Gig Shielded Jack Modules

  • Exceed ANSI/TIA 568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • Support IEEE 802.3af, 802.3at and 802.3bt type 3 and type 4 for all PoE applications up to 100 W.
  • Fully grounded and bonded to patch panel when installed in Panduit All-Metal Modular Patch Panels (0.187” grounding tab for grounding jacks).
  • Operating temperature: -10˚C to 75˚C (14˚F to 167˚F).
  • UL Certified EPD and HPD for LEED credits under MRc.
  • UL 2043 (suitable for use in air-handling spaces).
CJS6X88TG*Y

Category 6A, shielded, RJ45, 8-position, 8-wire universal module

CJS6X88TGY-24

24-pack Category 6A, shielded, RJ45, 8-position, 8-wire universal module

CJSH6X88TG*Y

Category 6A, shielded, RJ45, 8-position, 8-wire universal module with springshuttered door

FPS6X88MTG

Category 6A RJ45 Shielded Field Term Plug for field termination of 4-pair shielded twisted pair cable

The standard shielded jack is BL (Black): CJS6X88TGY

*Color Designation: BU (Blue), RD (Red), YL (Yellow), GR (Green), or VL (Violet). Ex: CJS6X88TGBUY.

Shield grounding requires proper installation of shielded jack module and the use of shielded patch cords and cable. For grounding shielded modules not installed in a shielded patch panel, see Panduit’s shielded jack module grounding kit, CJSGK-XY.

TX6A™ and TX6A-28 Shielded Copper Patch Cords

  • Exceed requirements of ANSI/TIA 568.2-D Category 6A, IEEE 802.3an-2006 and ISO 11801 Class EA channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • Compatible with the RapidID Network Mapping System.
  • Plug performance in center of TIA component range, ensuring interoperability and 10G BASE-T Ethernet channel performance.
  • Support IEEE 802.3af, 802.3at and 802.3bt type 3 and type 4 for all PoE applications up to 100 W.
STP6X*IG

Category 6A, 26 AWG, 10 Gb/s shielded S/FTP patch cord with TX6A modular plugs on each end

STP28X**MIG

Category 6A, 28 AWG, small diameter, 10 Gb/s shielded F/UTP patch cord with TX6A 10Gig modular plugs on each end

*Available lengths: 3 to 20 feet (one foot increments), 25 to 40 feet (five foot increments); **Available lengths: 0.5-10 meters (0.5 meter increments), 11-20 meters (one meter increments), and 25-40 meters (5 meter increments). Replace * or ** in part number with length designation.
Available colors: IG (International Grey), BL (Black), BU (Blue), GR (Green), RD (Red), YL (Yellow), OR (Orange), or VL (Violet). To designate a color other than International Grey, replace IG with color code.

Mini-Com All-Metal Shielded Modular Patch Panels

  • Mount to standard EIA 19” racks.
  • Panels grounded when installed into rack with thread-forming bonding screws.
  • Panel provides seamless bonding of the jack module when jack module is snapped in.
  • High-density panels support 48 ports in 1 RU density.
CP24BLY

24-port, 1 RU, all-metal modular, patch panel

CPA24BLY

24-port, 1 RU, angled, all-metal modular patch panel

CP24WSBLY

24-port, 1 RU, all-metal modular patch panel with strain relief bar

CPA48BLY

48-port, 2 RU, angled, all-metal modular patch panel

CP48BLY

48-port, 2 RU, all-metal modular patch panel

CP48WSBLY

48-port, 2 RU, all-metal modular patch panel

CP48HDBL

48-port, 1 RU, high-density, all-metal modular patch panel

CPA48HDBL

48-port, 1 RU, angled, high-density, all-metal modular patch panel

HD patch panels do not require CPT tool. For full range of modular patch panels, contact Panduit customer service.
