All Copper

Category 6 System Solutions Premium

Topics

Details

Key Features and Benefits

  • Designed to exceed ANSI/TIA 568.2-D channel requirements.
  • Installations covered by a 25-year comprehensive warranty program that provides performance to the
    latest industry standards.
  • All connectivity components are 100% performance-tested.
  • Quick installation of PanGen systems is provided through an extensive network of specially trained and certified installers.
  • Jack modules feature the patented Enhanced Giga-TX™ technology for terminations, which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist.
  • Patch cords feature slender strain relief boots for easy access to high-density environments and a patented tangle-free latch which prevents snags and provides easy release for simple moves, adds and changes.
  • PPatch panels are available in punchdown and modular styles and include flat and angled orientations.

Recommended for:

  • IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T,
    PoE, PoE++
  • ANSI/TIA 854: 1000 BASE-TX
  • CDDI, Token Ring, ATM
  • Digital Video
  • Broadband and Baseband Analog Video
  • LEED projects
Electrical Value Guaranteed Channel Headroom over ANSI/TIA Category 6A
Insertion Loss
9%
NEXT
6 dB
PSNEXT
7.5 dB
ACR-N
7 dB
PSACR-N
9 dB
ACR-F
8 dB
PSACR-F
10 dB
Return Loss
3 dB

* Electrical values are above specified standards and consist of worst pair margin per ANSI/TIA 568.2-C Category 6.

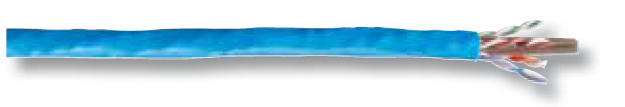

GenSPEED® 6500 Premium Category 6 Cable

Key Features and Benefits

  • Designed and engineered with precision balance to offer ultimate headroom.
  • High-end optimized performance to support the most bandwidth-intense applications.

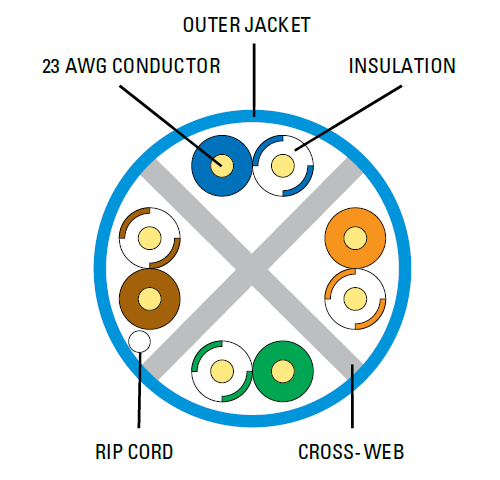

  • New and improved separator construction allowing for more pair separation.
  • Performance guaranteed to 350 MHz.
  • Improved cable temperature rating (90°C plenum, 75°C riser) for greater protection against increased operating temperatures and for high-wattage applications.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • UL Listed CMP-LP 0.6A with certified performance for high power PoE applications up to 120 W.
  • UL Listed CMR-LP 0.5A with certified performance for high power PoE applications up to 100 W.
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • TRU-Mark® print legend contains footage markings from 1000’ to 0’.
  • Third-party verified for guaranteed performance.
  • Made in U.S.A.

Part Numbers

Jacket Color Spool-Pac® CMR (Non-Plenum) Spool-Pac® CMP (Plenum) Spool CMR (Non-Plenum) Spool CMP (Plenum)

Blue
7133930
7131930
7133970
7131970

White
7133931
7131931
7133971
7131971

Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and lead time may apply. Non-stock items may be subject to minimum order quantities.

Panduit Connectivity

Mini-Com® TX6™ PLUS UTP Jack Modules

  • Exceed ANSI/TIA-568.2-D Category 6, IEEE 802.3an-2006 and ISO 11801 Class E channel standards.
  • Meet IEC 60512-99-002 for 2500 cycles of engaging and separating conductors under electrical load.
  • All jack modules are 100% performance-tested and individually serialized for future traceability.
  • Operating temperature: -10˚C to 75˚C (14˚F to 167˚F).
  • Terminate full range of 22-26 AWG conductors allowed per ANSI/TIA-568.2-D.
  • UL Certified Environmental Product Declaration (EPD) contributes toward one LEED® credit under Material and Resource credit (MRc).
  • Health Product Declaration™ (HPD™) contributes toward one LEED credit under MRc.
  • UL 2043 (suitable for use in air-handling spaces).
  • Support IEEE 802.3af, 802.3at and IEEE 802.3bt Type 3 and Type 4 for all PoE applications up to 100 W.
CJ688TGBU*

Category 6, RJ45, 8-position, 8-wire universal module

CJ688TGBU*-24

24-pack Category 6, RJ45, 8-position, 8-wire universal module

CJ688TGBU*-C

100-pack Category 6, RJ45, 8-position, 8-wire universal module

CJH688TGBU*

Category 6, RJ45, 8-position, 8-wire shuttered universal module with spring-shuttered door.

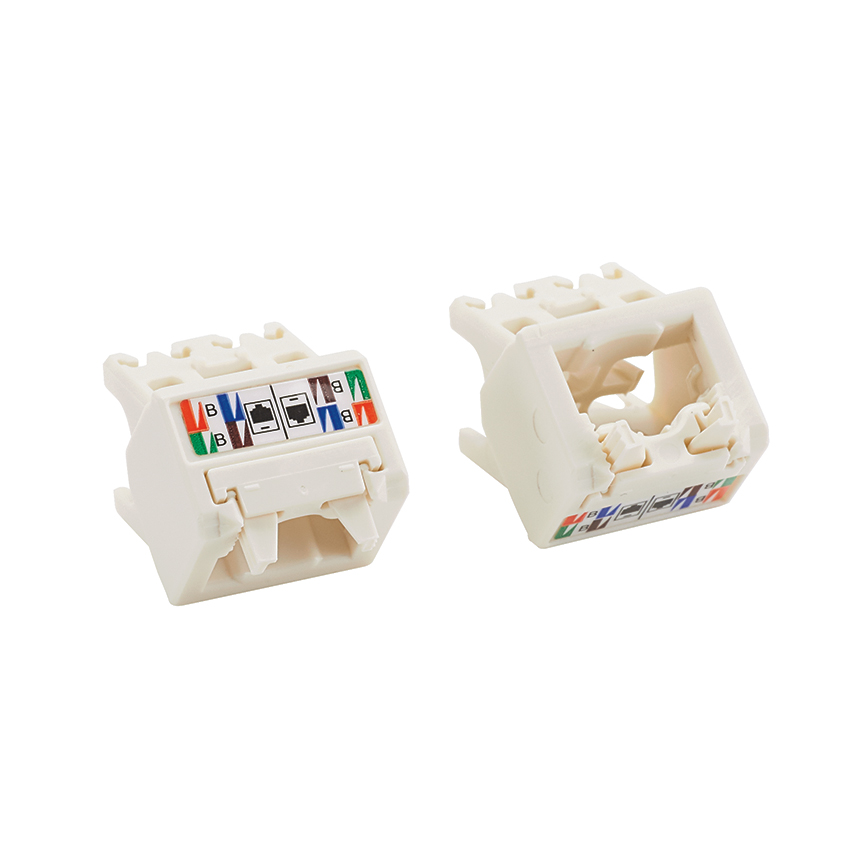

45° Angled Wire Cap for Cat 6A UTP TG Jack
CJUDCAPIW-X

45° angled up/down TG wire cap, off white. For use with TX6™ jack

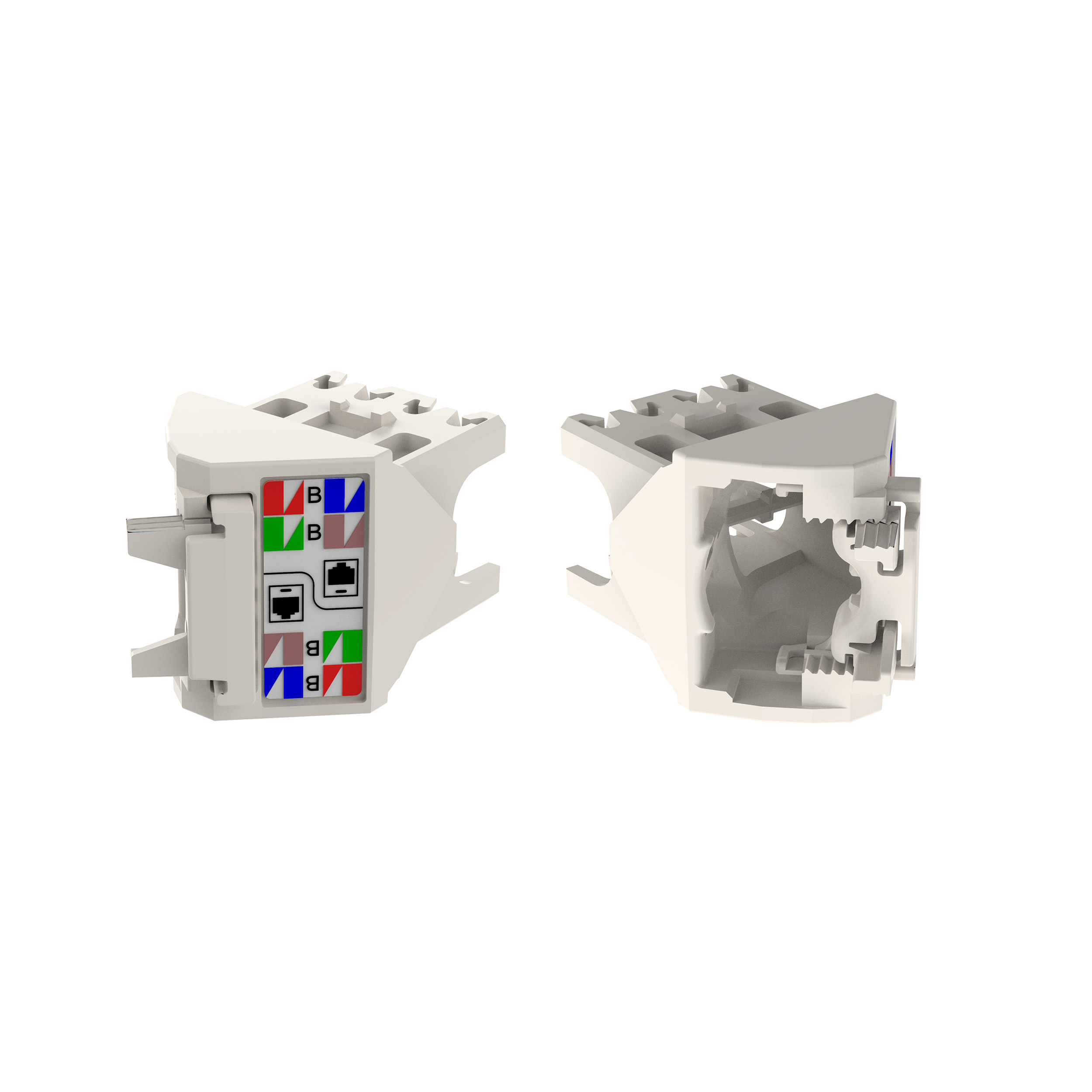

45° Angled Wire Cap for Cat 6A UTP TG Jack
CJLRCAPIW-X

45° angled left/right TG wire cap off white. For use with TX6™ jack.

close-up of FP6X88MTG
FP6X88MTG

Category 6A RJ45 UTP Field Term Plug for field termination of 4-pair unshielded twisted pair cable. Compatible with Category 6 channel.

close-up of FPUD6X88MTG
FPUD6X88MTG

Category 6A RJ45 UTP Field Term Plug with up/down wire cap for field termination of 4-pair unshielded twisted pair cable. Compatible with Category 6 channel.

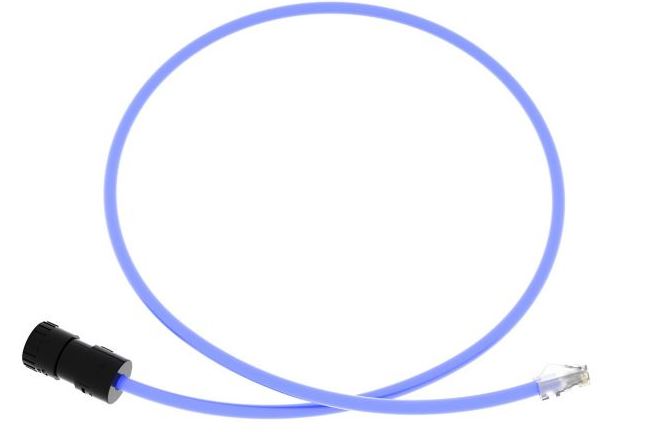

FC-ICCP0.5MBU

Category 6A UTP FieldCord Connector for field termination of 4-pair unshielded twisted pair cable. Compatible with Category 6 channel.

* Product is listed in Blue. To designate a different color, replace BU (Blue) with available colors: IW (Off White), EI (Electric Ivory), IG (International Grey), WH (White), BL (Black), BU (Blue), RD (Red), YL (Yellow), GR (Green), OR (Orange), or VL (Violet).

TX6 PLUS and TX6-28 Copper UTP Patch Cords

  • Exceed all industry performance standards for Category 6
  • 100% performance-tested
  • Available in a variety of colors and lengths for design flexibility
  • Category 6 28 AWG cord is less than 50% the size of traditional 24 AWG cords
  • UTP28SP^ cords support up to 96 meters of channel length (when used with 6 meters of patch)
  • Compatible with RapidID™ Network Mapping System

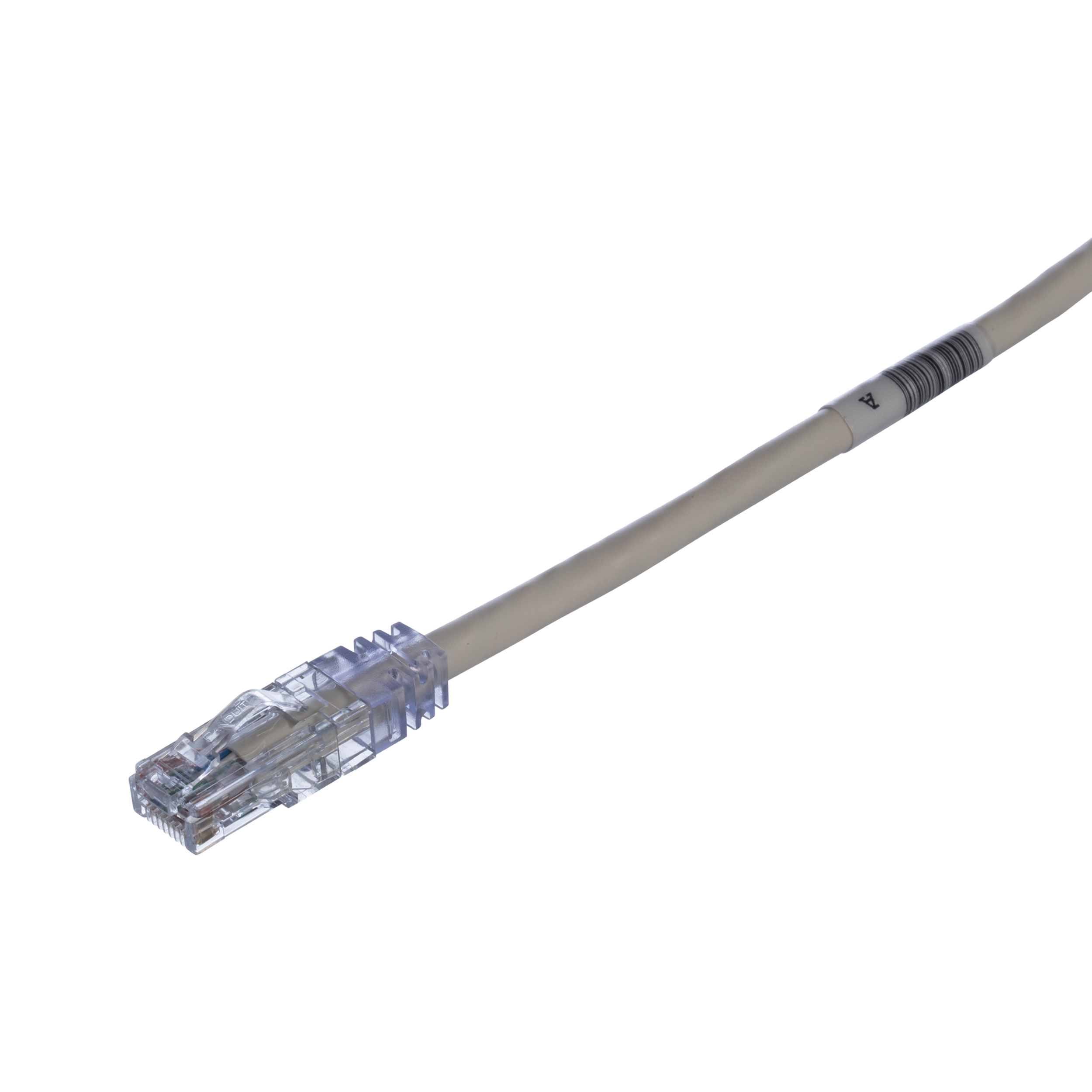

UTPSP3*Y
Diameter: 0.235 in

Category 6, UTP patch cord with TX6 PLUS modular plugs on each end

UTPSP3*Y

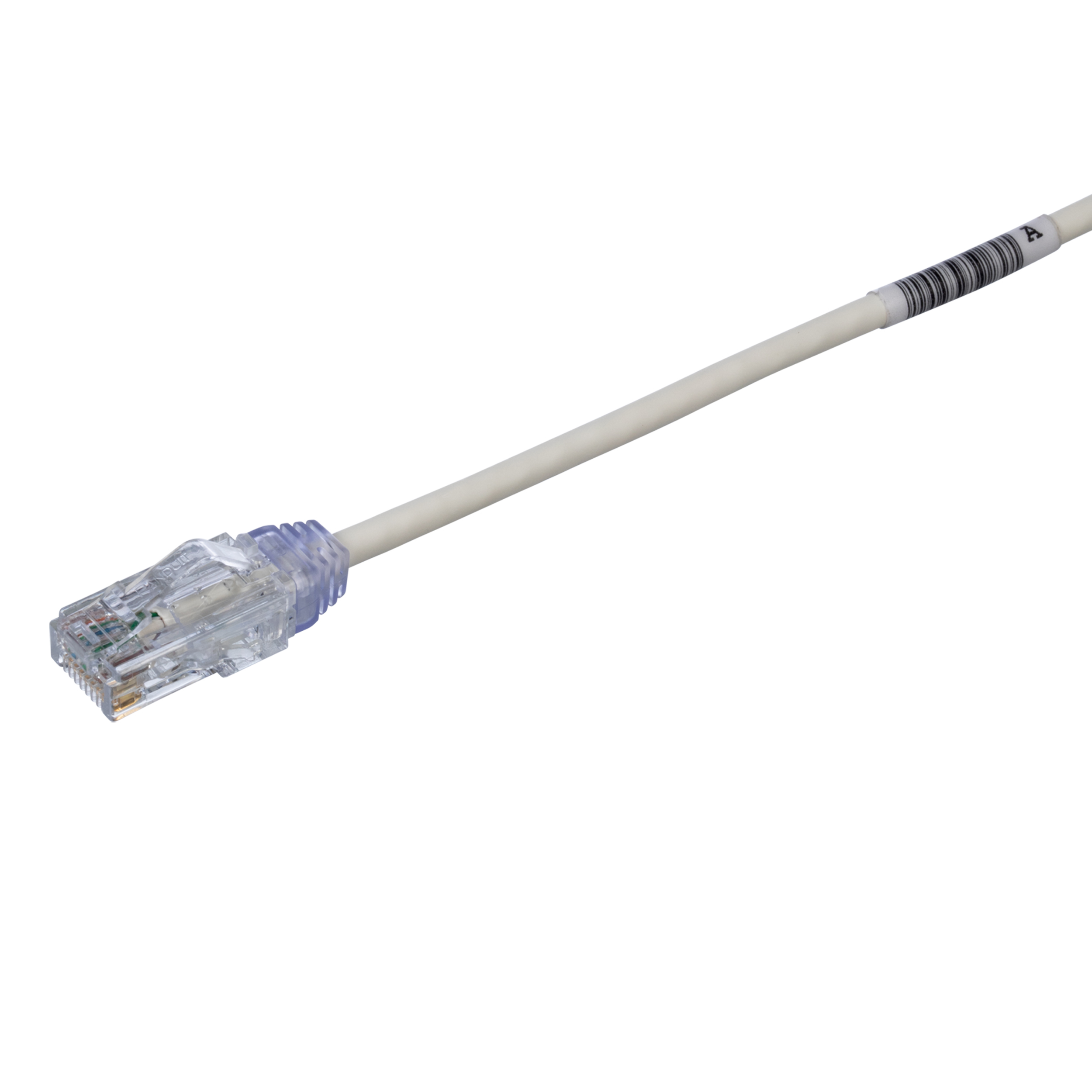

UTP28SP3*
Diameter: 0.150 in

Category 6, 28 AWG, small diameter UTP patch cord with TX6 PLUS modular plugs on each end

* Available in lengths 1 to 50 feet (increments of one foot) and 55 to 130 feet (increments of five feet). Patch cords listed in Off White. ^ To designate other colors,replace ^ with color designation: BL (Black), B(UB lue), GR (Green), OR (Orange), RD (Red), YL (Yellow), or VL (Violet).

DP6™ PLUS UTP Patch Panels

  • Mount to standard EIA 19″ racks.
  • DP6 PLUS UTP patch panels exceed all industry performance standards for Category 6.
  • Angled versions are ideal for higher density applications; facilitate proper bend radius control and minimize the need for horizontal cable managers.
  • Each port is 100% tested to ensure NEXT and RL performance and is individually serialized to support traceability.
  • Utilize 110 punchdown termination on back of panel and include retention cap for each port.
  • Color-coded for T568A and T568B wiring schemes.
DP24688TGY

24-port, 1 RU, Category 6 patch panel with 24 RJ45, 8-position, 8-wire ports

DPA24688TGY

24-port angled, 1 RU, Category 6 patch panel with 24 RJ45, 8-position, 8-wire ports

DP48688TGY

48-port, 2 RU, Category 6 patch panel with 48 RJ45, 8-position, 8-wire ports

DPA48688TGY

48-port angled, 2 RU, Category 6 patch panel with 48 RJ45, 8-position, 8-wire ports

Note: For a full range of modular patch panels, contact Panduit customer service.
